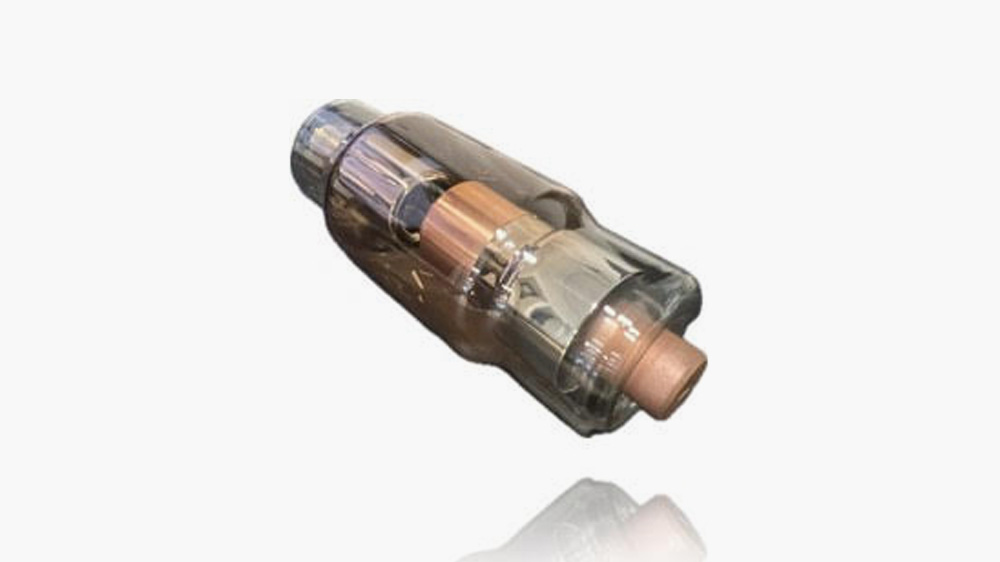

Luxbright MF1

Microfocus technology that combines micrometer resolution with high power in a bi-polar X-ray tube.

Key features

  • Maximum tube voltage: 160 kV
  • Maximum power: 100 W
  • Micrometer resolution: 50 μm

High Power Microfocus X-ray Tube

Luxbright MF1 operates up to 160kV and feature our microfocus technology that combines micrometer resolution with high power for faster measurement acquisition, using a bi-polar X-ray tube.

The combination of a relatively high kV and a small focal spot size expands the possibilities of using microfocus in a wide range of applications. Battery development or inspection and non-destructive tests of 3D printed metal parts are two examples that both require higher kVs.

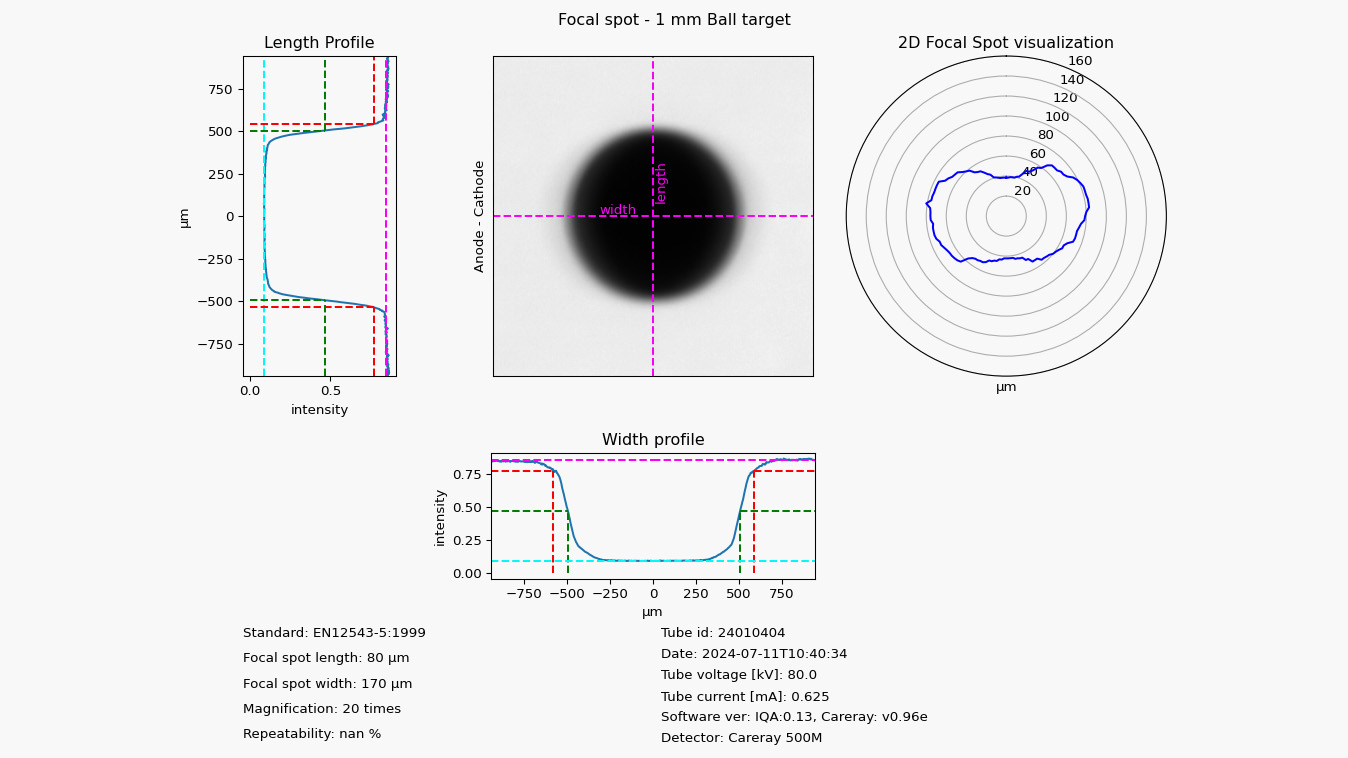

Improved Image Resolution

Luxbright tubes feature brilliant and inherent microfocus resolution producing vivid image quality with any application. The focal spot size fits the high resolution enabled by excellent X-ray image detectors.

Application examples

MF1 is a strong match for applications where both penetration and detail matter, for
example:

  • Battery cells, modules, and assemblies
  • Additively manufactured metals and complex industrial parts
  • Electronics and compact assemblies where small features must be resolved
  • Failure analysis, and quality assurance workflows
