Luxbright IX1

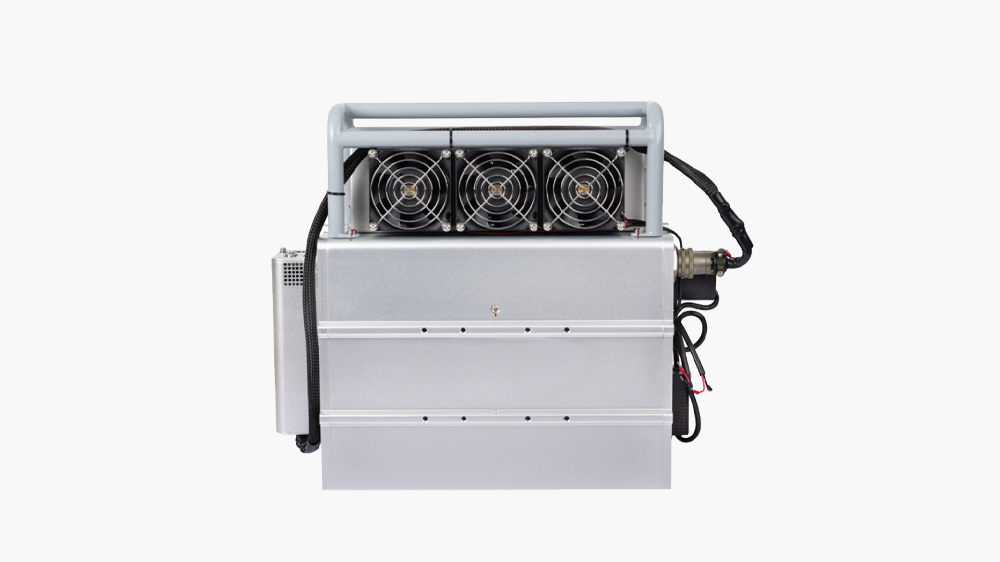

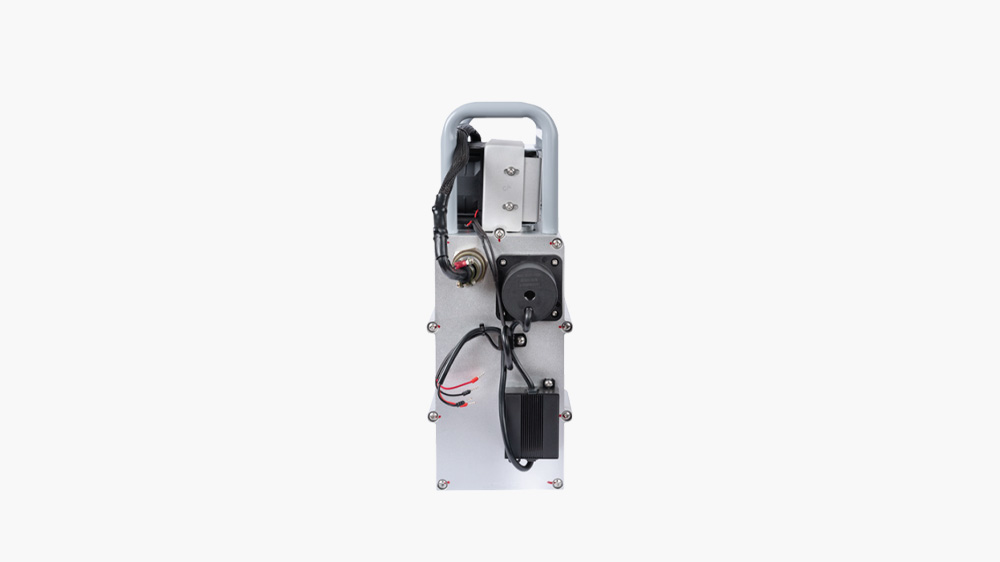

The IX1 is a complete, fully integrated X-ray source with X-ray tube, high voltage power supply, control electronics and heat radiator in one compact unit. Luxbright IX1 comes in two different versions; A 120 kV version, IX1-120001 and a 160 kV version, IX1-160001.
Key features
- Up to 160 kV, 100 W allowing quick acquisition in e.g. industrial CT.
- 50 μm resolution.
Inside the IX1, there is a Luxbright closed microfocus X-ray tube. Proprietary design of the cathode side enables microfocus resolution with a fixed anode, bi-polar X-ray tube. While integrated in a high quality generator, the result is an X-ray source enabling micrometer resolution at a competitive price.
| Parameter | IX1-160001 | IX1-120001 |
|---|---|---|
| Input Line Range | 24 VDC ±2%, 7.3 A | |
| Output kV | 80 kV – 160 kV | 80 kV – 120 kV |
| Output mA | 0.05 mA – 0.625 mA | 0.05 mA – 0.8 mA |
| Output Power | Max. 100 W | Max. 96 W |
| Radiation shield | Less than 0.5 mR/hr at 5 cm from the surface of the chassis as per FDA 21 CFR 1020.40 | |
| Safety and Regulatory Compliances | Designed to meet CE, IEC/EN61010-1 and EN61326-1. | |

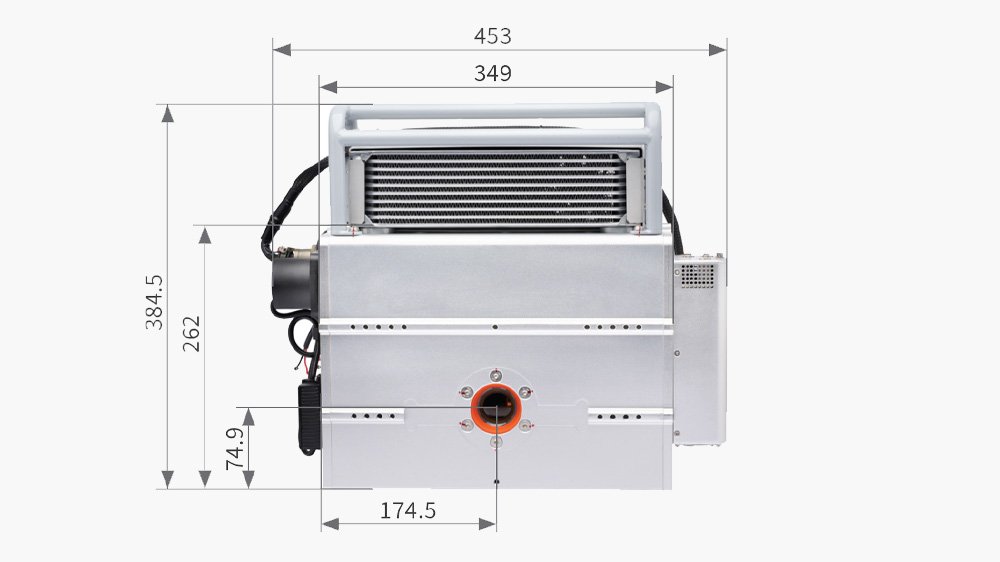

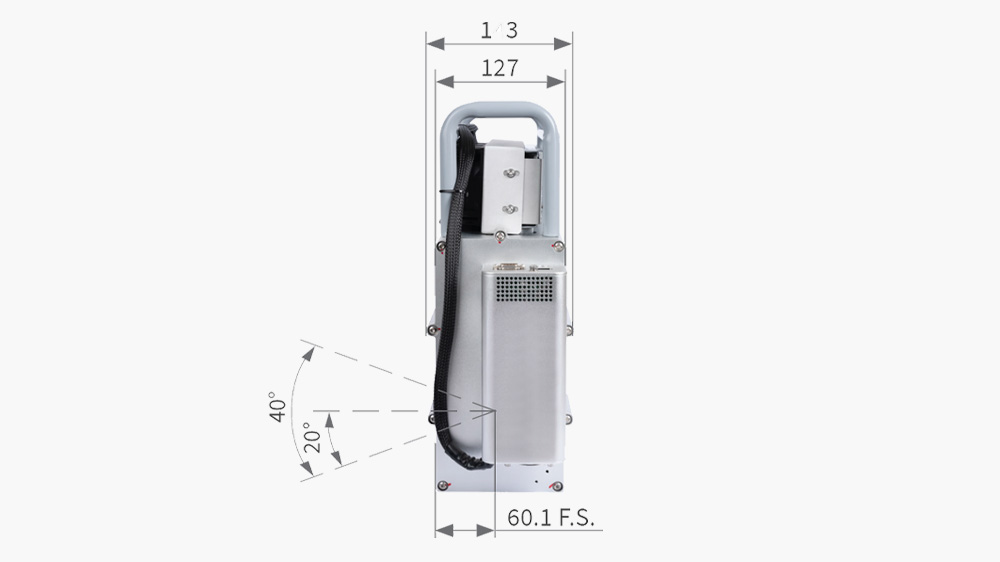

| Dimensions | Generator: 453 mm x 385 mm x 143 mm | |
| Weight | 23.4 kg | |
| Parameter | IX1-160001 | IX1-120001 |
|---|---|---|
| X-ray Tube Type | Borosilicate glass, Bi-polar, Fixed anode | |
| Anode material | Tungsten | |
| Anode angle | 20° | |
| X-ray Focal Spot Size | 100 μm nominal | |
| Parameter | IX1-160001 | IX1-120001 |
|---|---|---|
| Spatial Resolution | 50 μm (D13) spatial according to ISO 19232-5 & ASTM E2002 | |
| Focus to Object Distance (FOD) | 60.1 mm | |
| Beam port | Cone beam: 40° | |
| Parameter | IX1-160001 | IX1-120001 |
|---|---|---|
| Operating Temperature | 5°C to 40°C | |
| Storage Temperature | -20°C to 85°C | |
| Thermal Cut Off | 60ºC ± 3ºC of oil temperature | |
| Humidity | 98% non-condensing | |
| Parameter | IX1-160001 | IX1-120001 |
|---|---|---|
| PC Interface | RS-232 Serial or Ethernet RJ45 | |
| Interlock | 9-pin Male Connector | |
| Pump and Fans | Open-ended wires for 24 VDC 3.0 A | |
| Parameter | IX1-160001 | IX1-120001 |
|---|---|---|
| Direct control | PC software with GUI panel to set kV, mA etc. | |
| Integration with external software | RS-232 Digital Communication Protocol | |
